Computational Geometry and Computer Graphics
Lesson 3
Plan
- Coordinate Systems
- Cartesian Coordinate Systems
- O
- Vector
- Sum and Min
- Movement
- Vector field (vs Gradient)
- Derivative
Coordinate Systems?
Coordinate Systems
Coordinate Systems - is a system that uses one or more numbers, or coordinates, to uniquely determine the position of the points or other geometric elements on a manifold such as Euclidean space.
Cartesian Coordinate Systems
Renatus Cartesius - René DesCartes - In old French, "des" is a contraction of "de les", meaning "of the" or "from the".
Cartesian Coordinate Systems

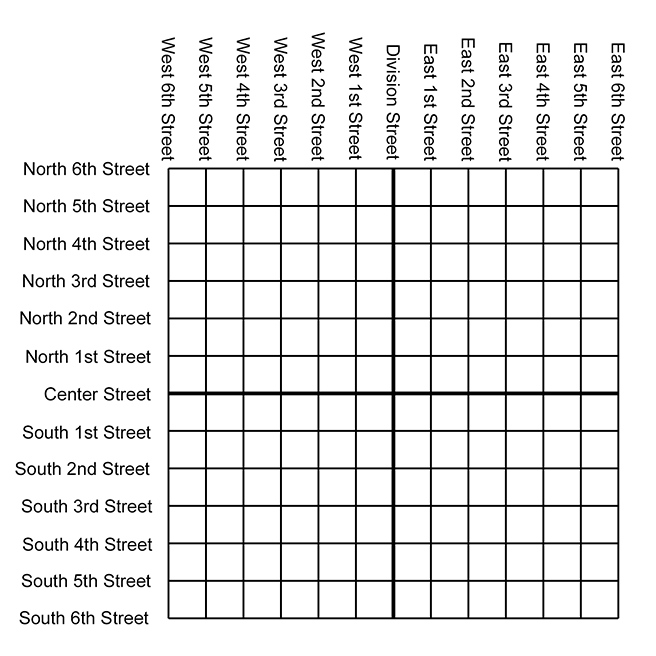

Map of the hypothetical city of Cartesia

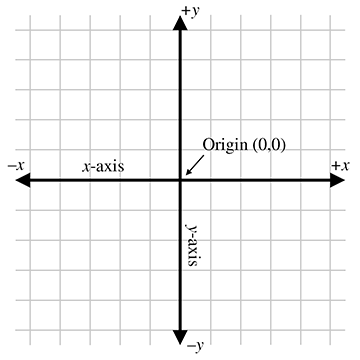

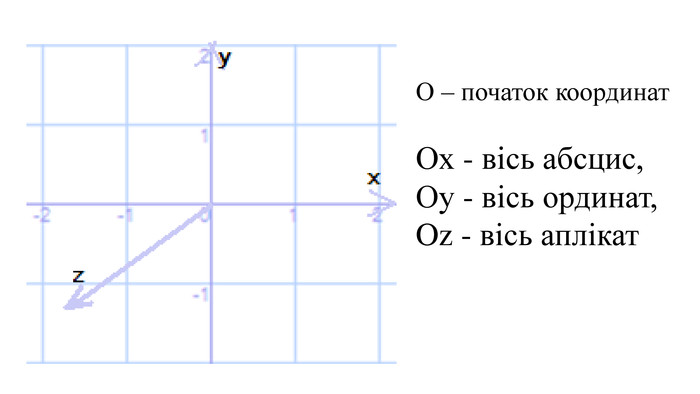

Cartesian Coordinate Systems
Dont you have any questions?
Cartesian Coordinate Systems
Base geometric objects?
Point
A point has no dimensions — no length, width, or height.
It simply represents a location in space.
Line
A line is straight and extends infinitely in both directions.
It has one dimension — length.
Line Segment
A part of a line that has two endpoints.
It is measurable and has a fixed length.
Ray
A ray starts at a point and goes infinitely in one direction.
Plane
A flat, two-dimensional surface that extends infinitely.
Defined by three non-collinear points.
Solid
A three-dimensional object with volume.
Examples: cube, sphere, cylinder.
What did we loss?
Vectors
Vectors are indeed a fundamental geometric object, especially in more advanced geometry, physics, and computer graphics.
Vector
A vector is a quantity that has both magnitude and direction.
It is often represented by an arrow.
- The length of the arrow = magnitude
- The direction of the arrow = direction
Vector Notation
Vectors are usually written as 𝐯 or ⟨x, y⟩ in 2D space.
Example: A vector from point A(1, 2) to point B(4, 6) is ⟨3, 4⟩.
Applications of Vectors
- Physics – force, velocity, acceleration
- Computer graphics – motion and transformations
- Navigation – displacement and direction
Vectors almost Radius Vector

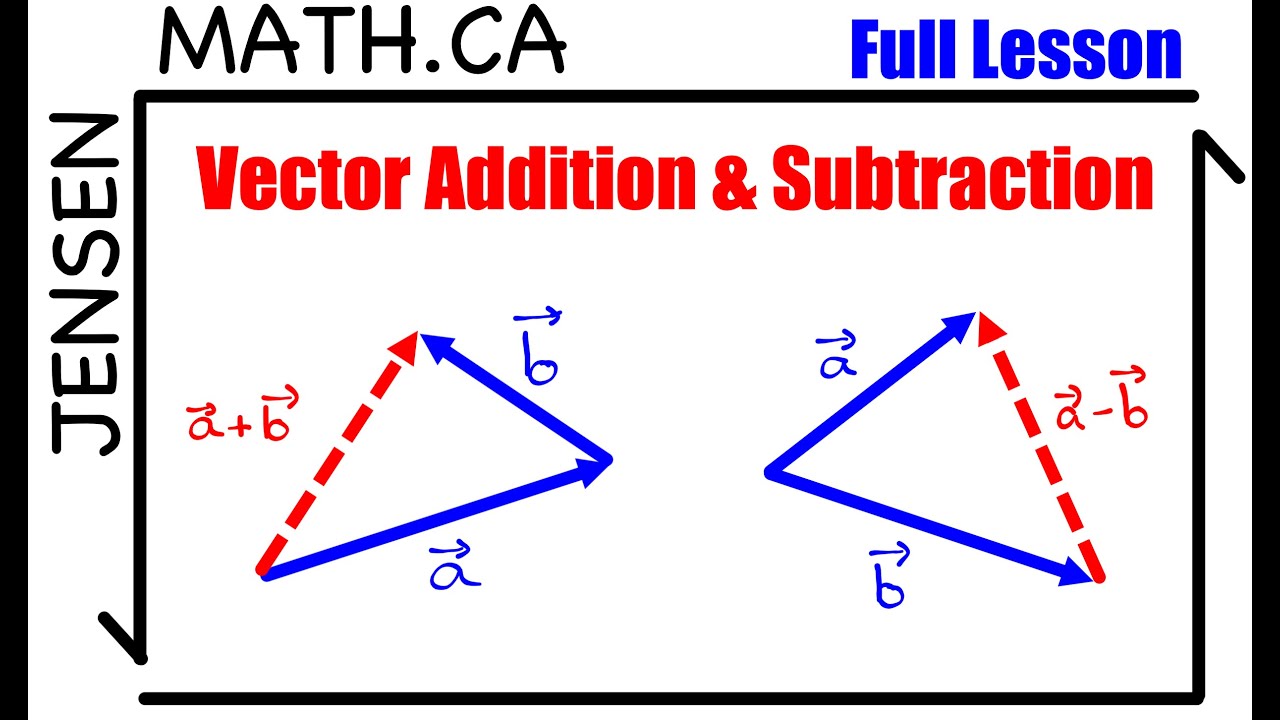

Position (Geometry) — WikipediaVectors - Sum and Minus - Triangle Rule

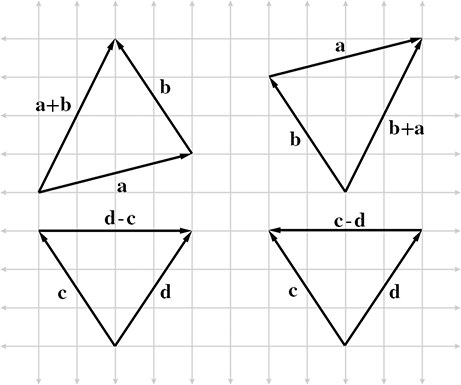

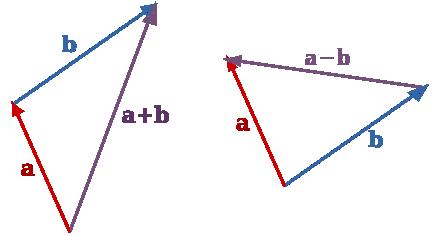

Vectors - Sum and Minus - Triangle Rule
Vectors - Sum and Minus - Triangle Rule
Vectors - Sum and Minus - Triangle Rule
Movements - Examples

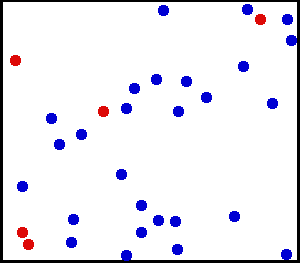

Brownian motion
https://en.wikipedia.org/wiki/Brownian_motion Brownian Motion — Wikipedia
Brownian motion

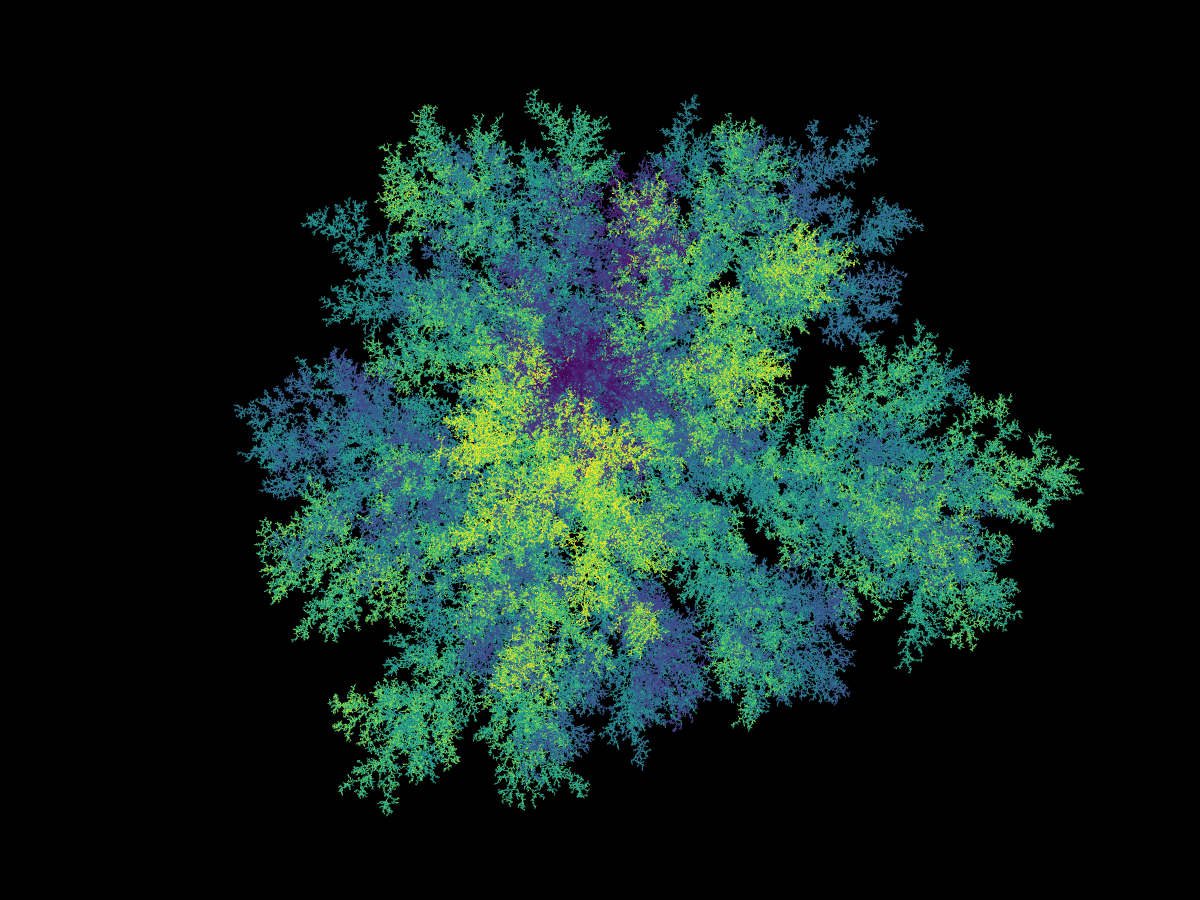

Brownian tree
Brownian Tree — Wikipedia
Brownian motion
Brownian tree
Brownian Tree WebGL (GitHub)
Brownian motion
Mountains and landscape
More Noise by Inigo Quilez
Brownian motion
Expert Level:The Book of Shaders — Chapter 13
Vector field (vs Gradient)
What will be drown:x = 5;
Vector field (vs Gradient)
What will be drown:\[ \left\{ \begin{aligned} \frac{dx}{dt} &= y \\ \frac{dy}{dt} &= -x - y \cdot z \\ \frac{dz}{dt} &= a \cdot y^2 \end{aligned} \right. \]
Vector field (vs Gradient)
We need to answer three questions first:- How to find out where the wind is blowing
- Where the water is running
- And how to find the ground if you’re in the snow after an avalanche
Vector field (vs Gradient)
Find out where the wind is blowing?
Vector field (vs Gradient)
Find out where the wind is blowing - How to see it?
Vector field (vs Gradient)

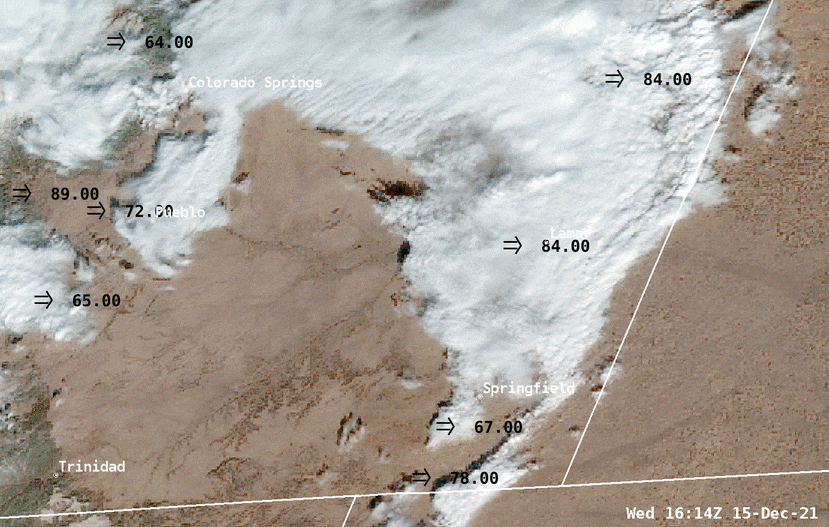

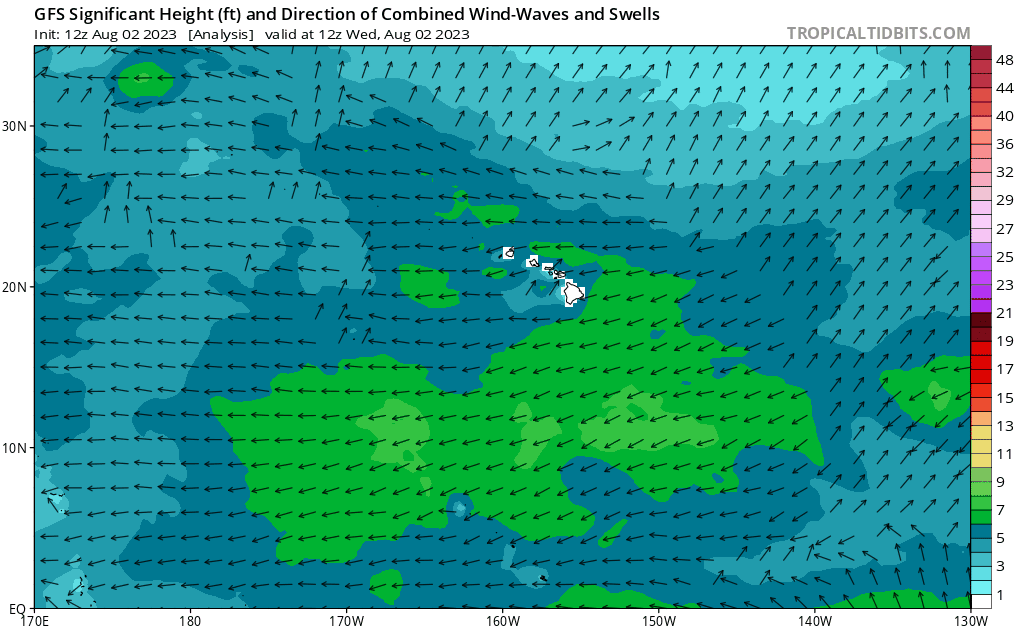

Find out where the wind is blowing
Vector field (vs Gradient)
Where the water is running - at the Dark Night?
Vector field (vs Gradient)
Where the water is running?
Vector field (vs Gradient)
Where the water is running?
And how to find the ground if you’re in the snow after an avalanche
Derivative
Derivative
What will be drown:y = x;
Derivative
What will be drown:\[ x'(t) = 2 \]
Derivative
What will be drown:\[ x(t) = 2x + С \] C=0
Derivative
What will be drown:\[ x'(t) = 2 \] \[ x(t) += 2t \] C=0
Derivative
What will be drown:\[ x'(t)= 2x(t) \]
Vector field (vs Gradient)
What will be drown:\[ x(t) += 2x*t \] \[ x(t) = Ce^{2t} \] C=1 \[ x(t) = e^{2t} \]
Vector field (vs Gradient)
What will be drown:\[ x(t) += 2x*t \]
| x(0) | x(1) | x(2) |
|---|---|---|
| 1 | 3 | 9 |
Vector field (vs Gradient)
What will be drown:\[ x(t) = e^{2t} \]
| x(0) | x(1) | x(2) |
|---|---|---|
| 1 | 7.389 | 54.598 |
| Derivative function | x(0) | x(1) | x(2) |
|---|---|---|---|
| \[ x(t) = e^{2t} \] | 1 | 7.389 | 54.598 |
| \[ x(t) += 2x*t \] | 1 | 3 | 9 |
