Python and The Basics of Programming.

Branches ( if, else, then, case, match, ternary operation, Elvis operator )

Lesson 2

Author: Egoshkin Danila Igorevich

Branches:

if, else, then
case, match
ternary operation
Elvis operator

If and Else

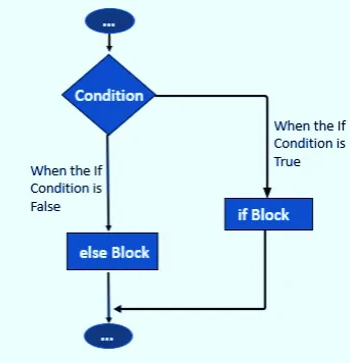

What is the "If and Else" Branches?

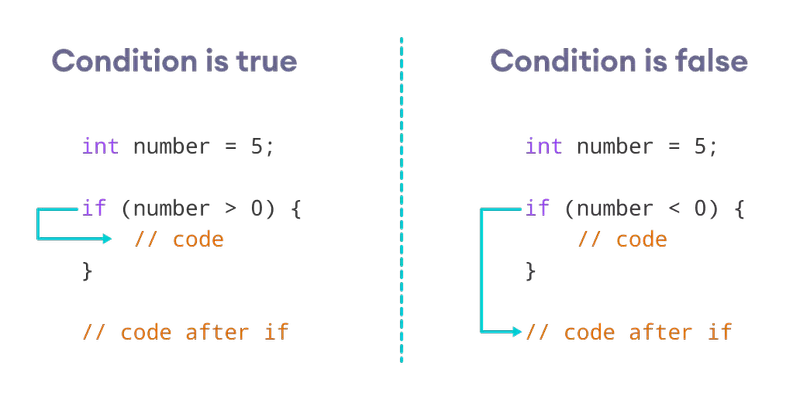

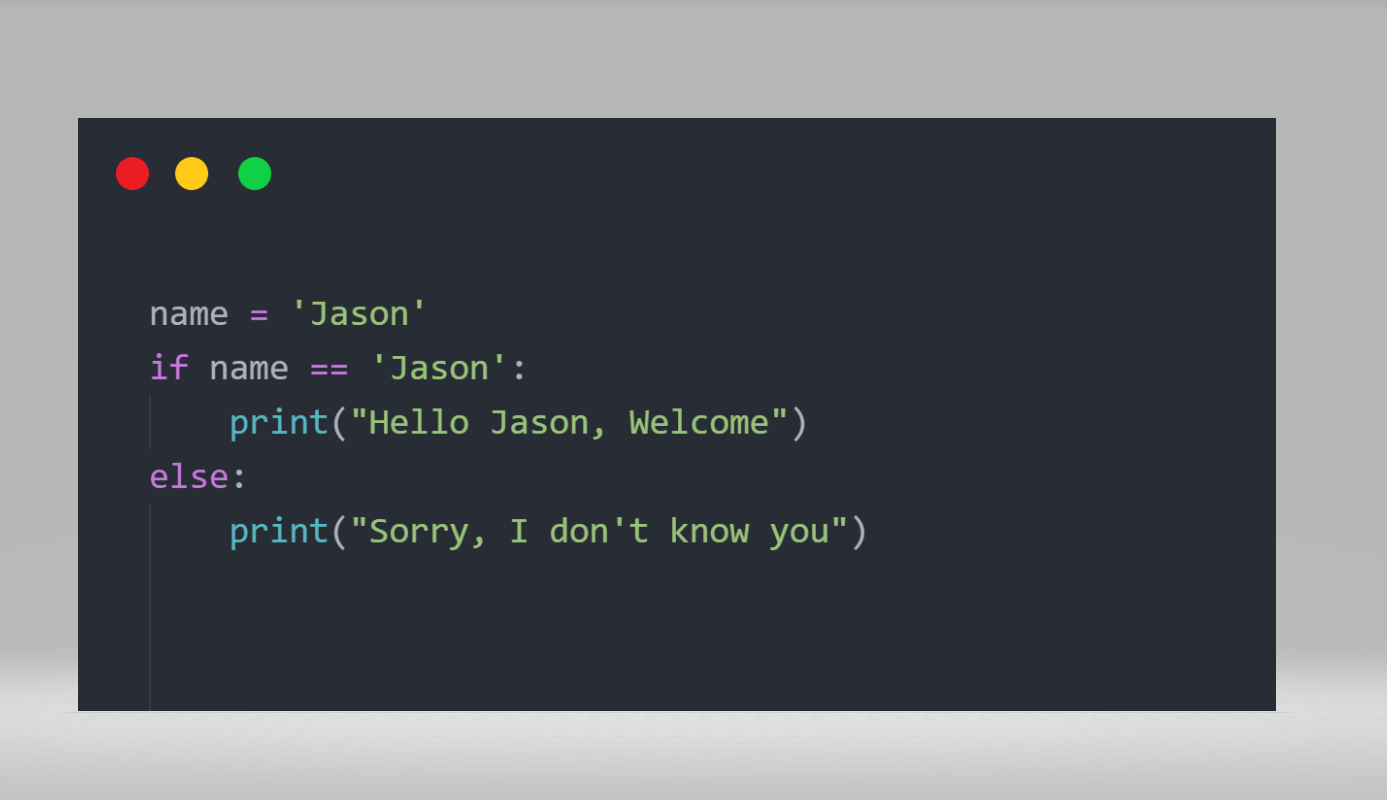

If and Else - Examples

If and Else

if(condition == true)
{

}
else
{

}

If and Else - ex.Max


int a, b, max;
cout << "Enter a: ";
cin >> a;
cout << "Enter b: ";
cin >> b;
if(a > b)
{
    max = a;
}
else
{
    max = b;
}
cout << "Maximum: " << max << endl;

Can we use If without Else?

Yes!!!


if(condition == true)
{
    // ToDo
}

If without Else - ex.Number


int number;
cout << "Enter number [0,+inf]: ";
cin >> number;
if(number == 0)
{
    cout << "The Number is equal to 0" << endl;
}
if(number > 0)
{
    cout << "The Number more than 0" << endl;
}
if(number > 25)
{
    cout << "and more than 25" << endl;
}
if(number > 50)
{
    cout << "and bigger than 50" << endl;
}
if(number > 100)
{
    cout << "and larger than 100" << endl;
}

If without Else - ex.Max


int a, b, max;
cout << "Enter a: ";
cin >> a;
cout << "Enter b: ";
cin >> b;
max = a;
if(b > a)
{
    max = b;
}
cout << "Maximum: " << max << endl;

If without Else - ex.Max

Is it looks good?


void encoder(char *text, int text_len){
    for (int i = 0; i < text_len; i++) {
        char letter = text[i];
        char part1 = (letter & 0xf0) >> 4;
        char part2 = letter & 0xf;
        char part1_1 = (part1 >> 3) << 2;
        char part1_2 = ((part1 >> 2) & 0x1) << 3;
        char part1_3 = ((part1 >> 1) & 0x1);
        char part1_4 = (part1 & 0x1) << 1;
        part1 = part1_1 | part1_2 | part1_3 | part1_4;
        part2 = part1 ^ part2;
        text[i] = (part1 << 4) | part2;
    }
}

bool encodeString(char *text, int text_len) {

    // What is wrong with encodeString function

    if (text != NULL) {
        encoder(text, text_len);
        cout << "Encrypted: " << text << endl;
    }

    return true;
}

If..Else inside If..Else


if() {
    if() {
    }
    else {
    }
}
else {
    if() {
    }
    else {
    }
}

If..Else inside If..Else


if(Rainy) {
    if(Windy) {
        if(Cold) {
            cout << "Stay Home and drink a tea" << endl;
        } else {
            cout << "Take umbrella and coat" << endl;
        }
    } else {
        cout << "Take umbrella" << endl;
    }
} else {
    cout << "Go for a walk" << endl;
}

If and Else - ex.Max a == b


int a, b, max;
cout << "Enter a: ";
cin >> a;
cout << "Enter b: ";
cin >> b;

if(a == b) {
    cout << "a and b are the same" << endl;
    max = a;
}
else {
    if(a > b) {
        max = a;
    }
    else {
        max = b;
    }
}
cout << "Maximum: " << max << endl;

else if - elif

If, Else If and Else - ex.Max a == b


if(condition1) {
}
else {
    if(condition2) {
    }
    else {
        if(condition3) {
        }
        else {
        }
    }
}


if(condition1) {
}
else if(condition2) {
}
else if(condition3) {
}
else {
}

If, Else If and Else - ex.Max a == b


int a, b, max;
cout << "Enter a: ";
cin >> a;
cout << "Enter b: ";
cin >> b;

if(a == b) {
    cout << "a and b are the same" << endl;
    max = a;
}
else {
    if(a > b) {
        max = a;
    }
    else {
        max = b;
    }
}
cout << "Maximum: " << max << endl;


int a, b, max;
cout << "Enter a: ";
cin >> a;
cout << "Enter b: ";
cin >> b;

if(a == b) {
    cout << "a and b are the same" << endl;
    max = a;
}
else if(a > b) {
    max = a;
}
else {
    max = b;
}

cout << "Maximum: " << max << endl;

Switch...Case - Match...Case


if(color == COLOR_GREEN) {
    cout << "Go, go, go... But don`t RUN" << endl;
}
else {
    if(color == COLOR_YELLOW) {
         cout << "Hold on, steady, wait" << endl;
    }
    else {
        if(color == COLOR_RED) {
            cout << "Stay and wait" << endl;
        }
        else {
            cout << "Stop digging your nose and look at the color" << endl;
        }
    }
}


enum Colors {
	COLOR_GREEN,
	COLOR_YELLOW,
	COLOR_RED
};

switch (color)
{
    case COLOR_GREEN:
        cout << "Go, go, go... But don`t RUN" << endl;
        break;
    case COLOR_YELLOW:
        cout << "Hold on, steady, wait" << endl;
        break;
    case COLOR_RED:
        cout << "Stay and wait" << endl;
        break;
    default:
        cout << "Stop digging your nose and look at the color" << endl;
        break;
}

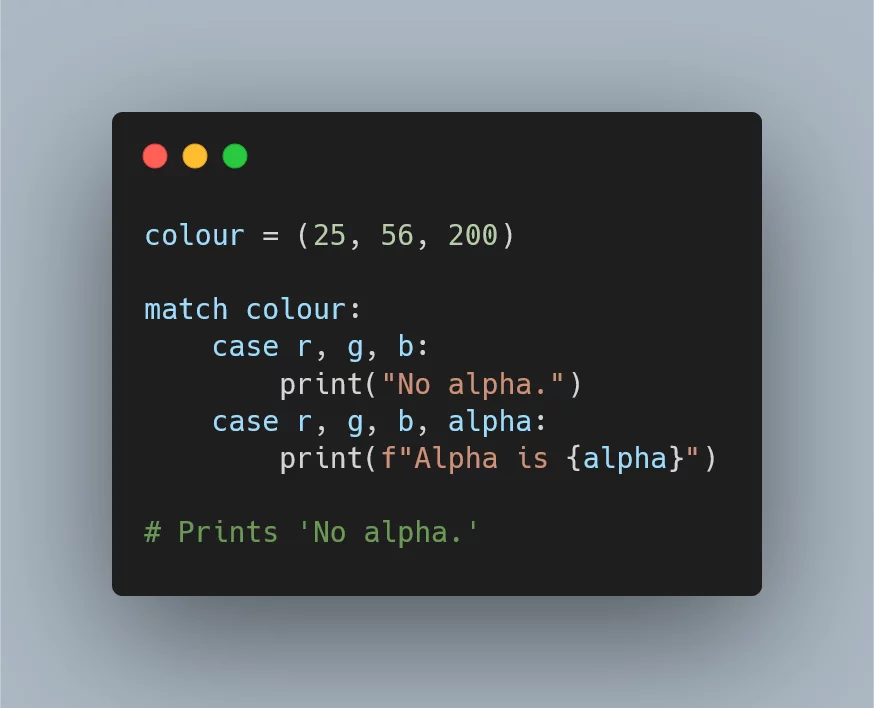

Switch...Case - Match...Case

Only in python



match (object):
    case objectCase1 | objectCase2 | objectCase3:
        ...
    case _:
        ...

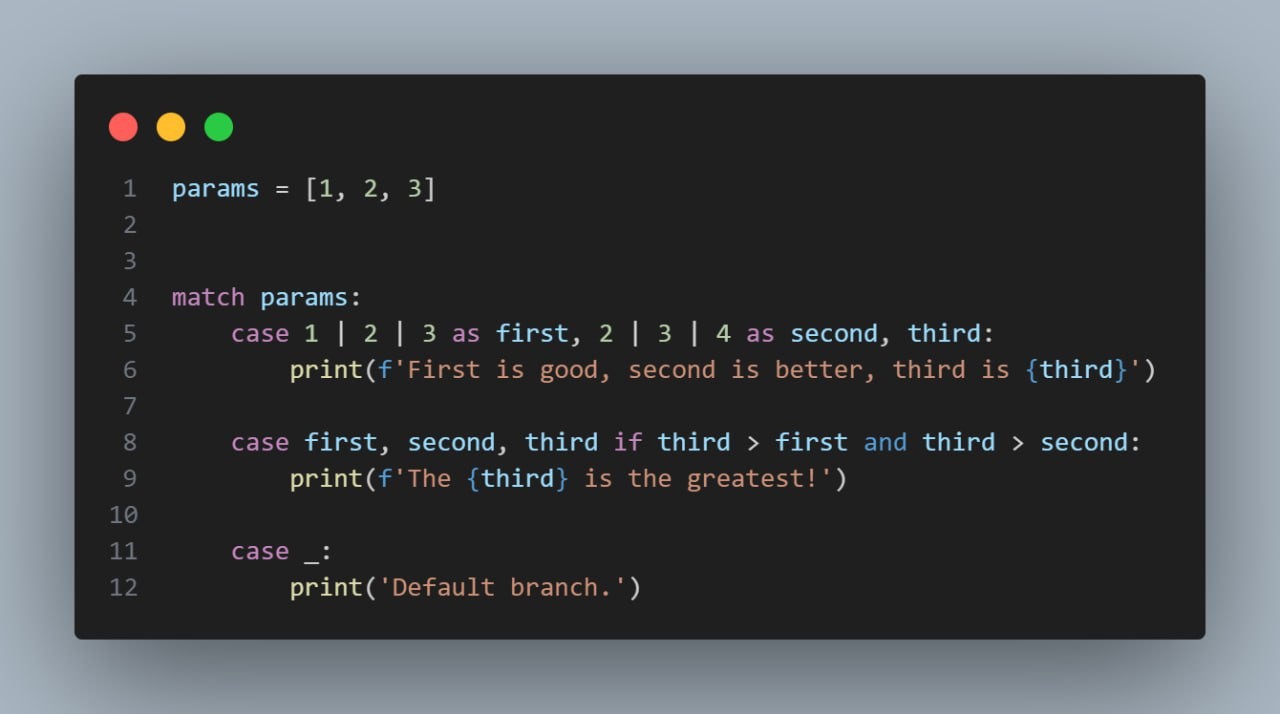

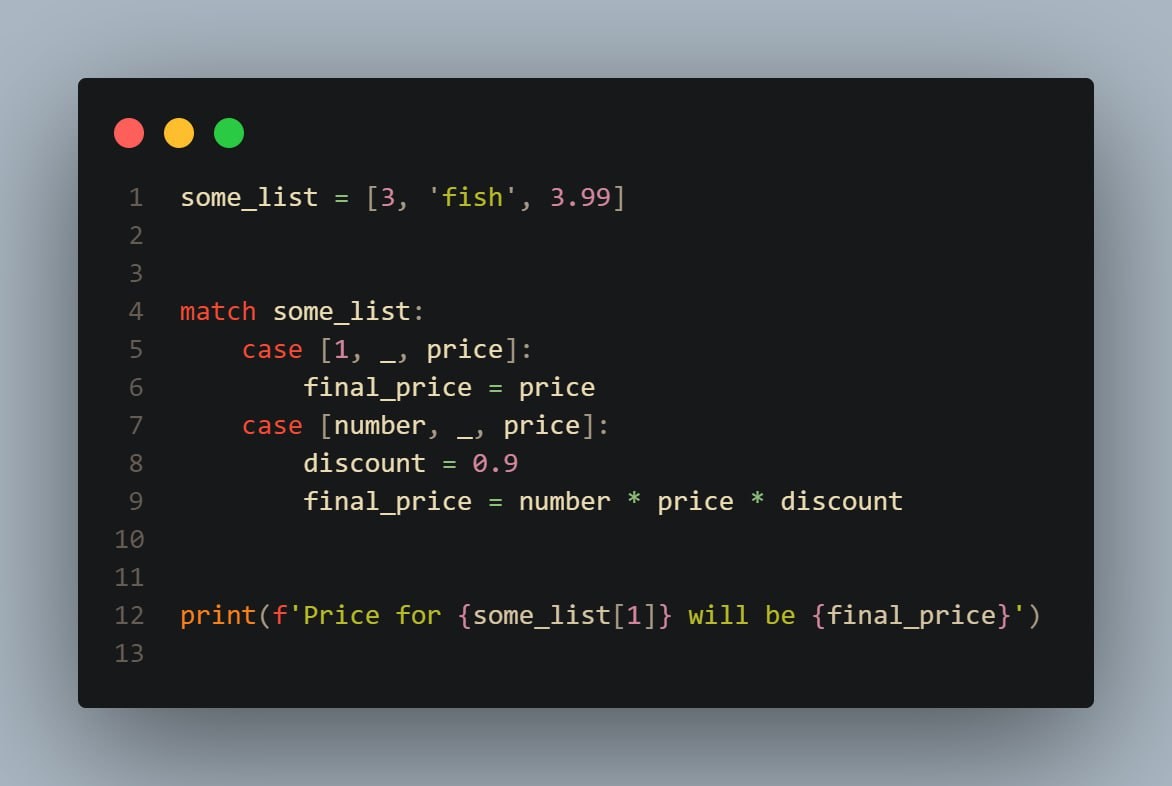

Switch...Case - Match...Case

Only in python (Structural pattern matching is coming in Python 3.10)

Ternary operation ???

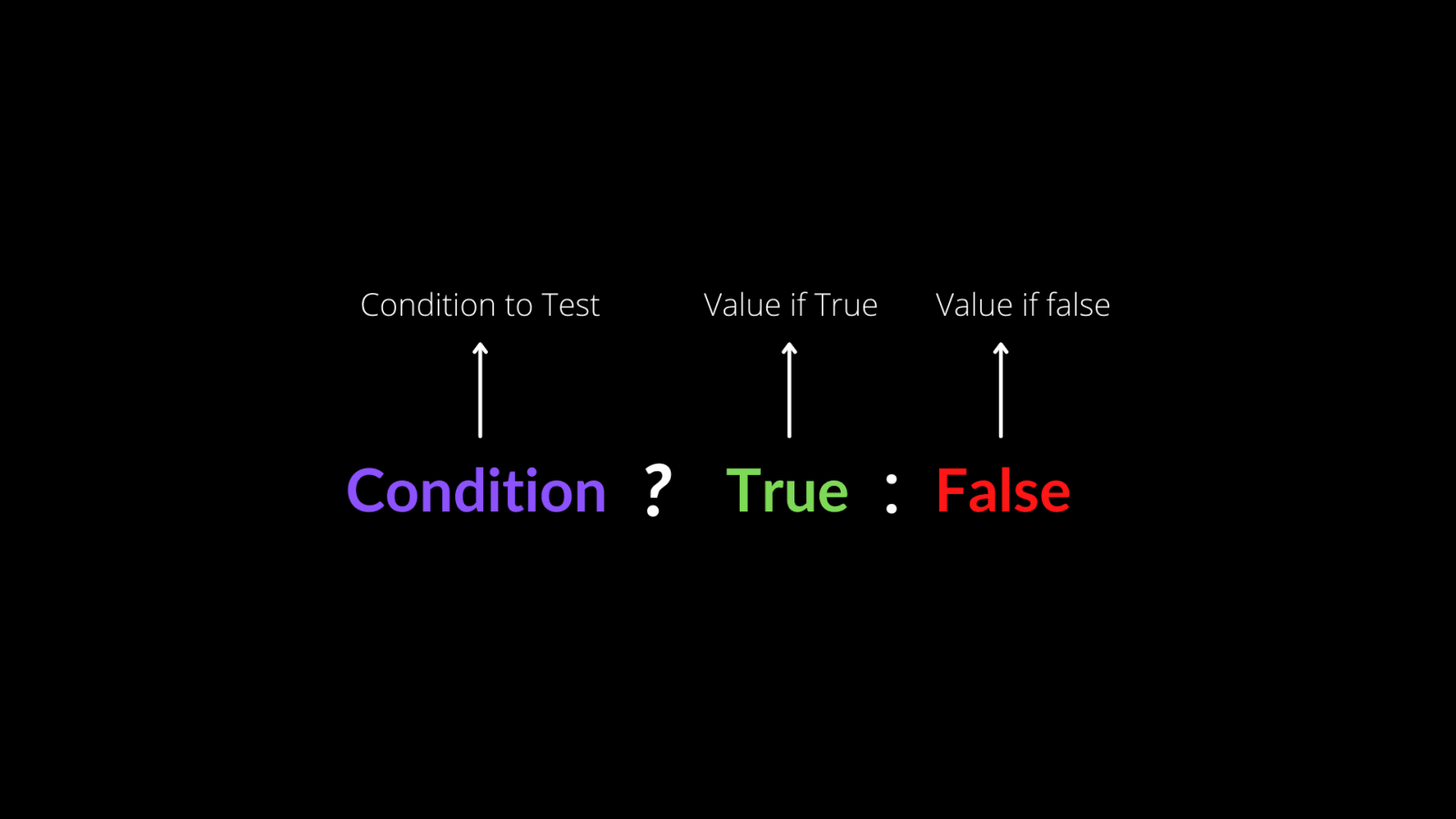

Ternary operation

Crown of thorns - Терновий вінець

https://en.wikipedia.org/wiki/Prunus_spinosa

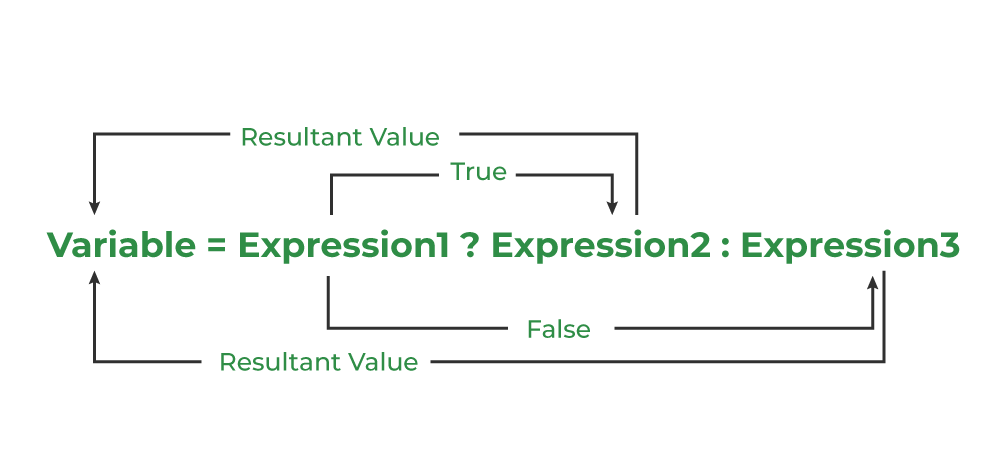

Ternary operation in C++ and other

Ternary operation in Python and other

Ternary operation

looks lambda...
x -> M
f(x) -> M
but: (M is an expression that uses x) https://en.wikipedia.org/wiki/Lambda_calculus

Elvis operator

https://en.wikipedia.org/wiki/Elvis_operator

Elvis operator

Elvis operator - aka (also known as) null coalescing operator https://en.wikipedia.org/wiki/Null_coalescing_operator

In python can be made by Ternary operation


now() if time is None else time

Branches usage???

Branches:

if, else, then
case, match
ternary operation
Elvis operator

AI

Simple expert system on rules

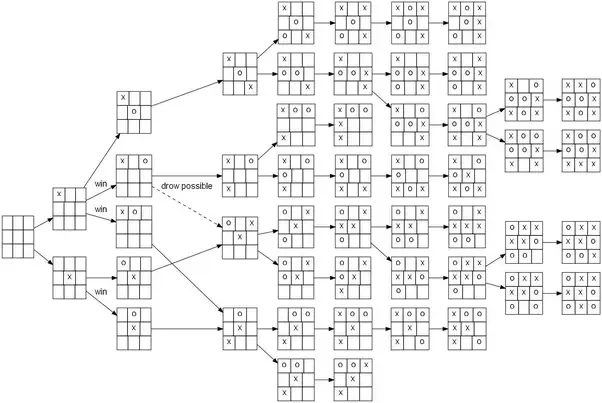

Tic Tac Toe Game

Other usage:
AI usage, filtering
TODO

Links:

Thanks for your attention :)
